Soybean projects don't fail on press tonnage — they fail on flaking, conditioning, and being honest about scale

Decide first

Pick the scale and route before the machine — the quick read

Hydraulic pressing and solvent extraction are different process families, not two settings on one machine. For soybean's low oil content, scale decides the family before tonnage decides the model.

Step by step

The soybean line from whole bean to filtered crude oil

1. Step 1

   1 · Clean and dry to 10-11% moisture

   Vibrating screen + magnetic separator + destoner brings impurities below 0.1%. Intake moisture is often 12-13%; dry to 10-11% so beans crack cleanly instead of smearing.

2. Step 2

   2 · Crack and dehull (hull 7-9%)

   Corrugated cracker rolls (1-2 mm gap) break each bean into 4-6 pieces and expose oil cells. An aspirator removes the 7-9% hull. Dehulled cake protein reaches 48-50% versus 44% with hulls in.

3. Step 3

   3 · Flake to 0.25-0.35 mm

   Smooth-roll flaking to 0.25-0.35 mm thickness ruptures the 10-15 μm oil cells. Above 0.4 mm cells stay intact and yield drops 3-5 points; below 0.2 mm flakes disintegrate and fines clog the press.

4. Step 4

   4 · Condition 70-80°C × 30-45 min

   A steam-jacketed conditioner at 70-80°C for 30-45 min (moisture 10-11%) softens cell walls and lowers oil viscosity. Below 70°C residual cake oil rises 1-2 points; above 90°C protein denatures and meal value falls.

5. Step 5

   5 · Hydraulic press, then filter immediately

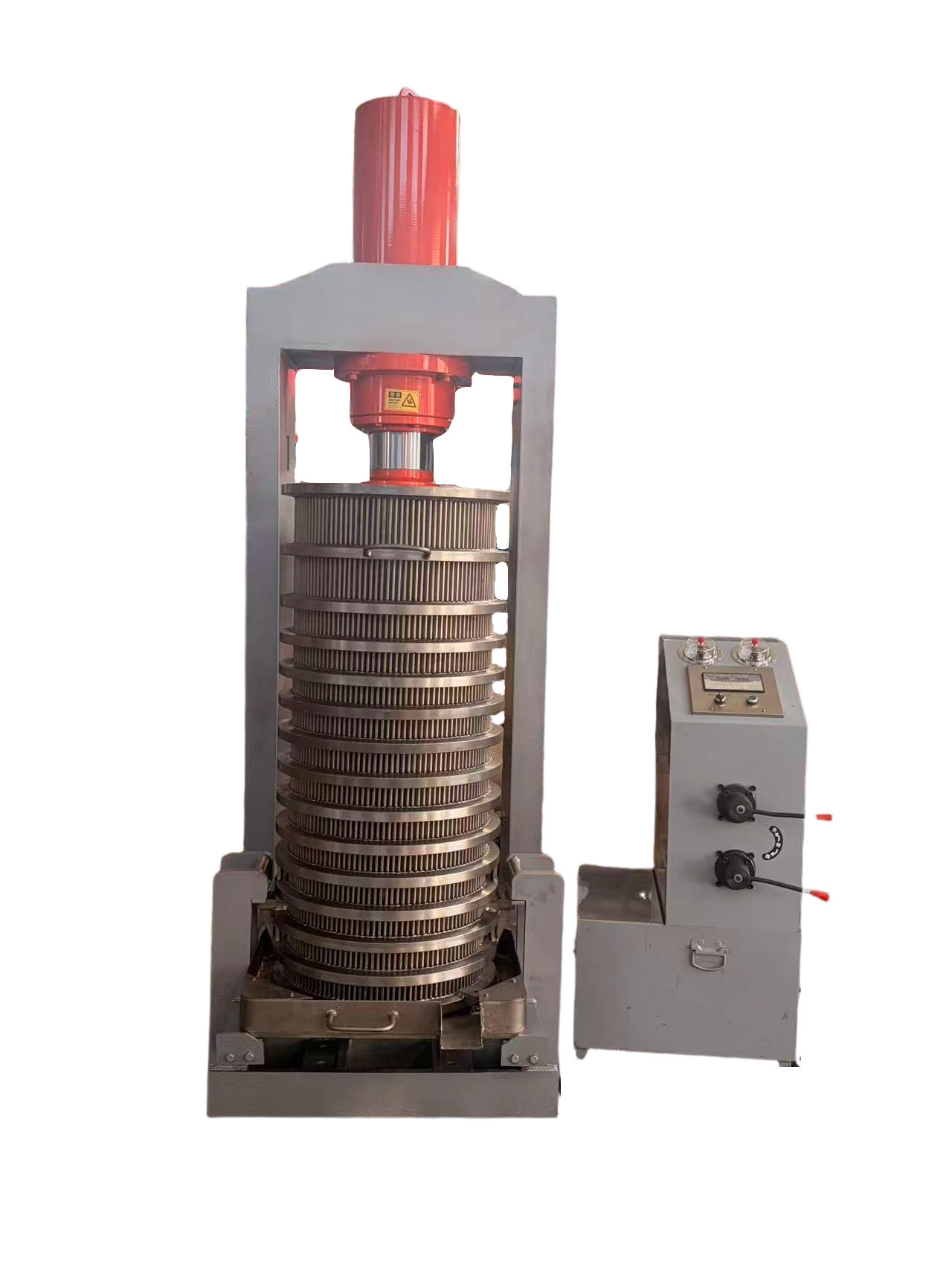

   Load a 390 × 800 mm barrel (~100 kg) on a 200-325 ton press; system pressure 60 MPa, 2.2 kW motor, mechanical relief valves. Cycle 30-45 min, yield 12-16%. Filter crude oil at 200-300 mesh before sediment settles.

Key parameters

Real soybean numbers to size the line

Every figure below comes from the soybean production spec, not a generic catalog. Use them to sanity-check any quote.

Avoid rework

Mistakes the press gets blamed for — but that belong upstream

• Pressing whole or only-cracked beans without flaking: yield collapses to 8-12% instead of 12-16%, and the press is blamed for an upstream gap.
• Conditioning below 70°C or above 90°C: residual cake oil rises 1-2 points, or protein denatures and meal value drops.
• Letting moisture stay above 12% at the press: cake collapses, oil bypass channels form, and residual oil climbs past 10%.
• Promising commodity tonnage on a batch line: one 325-ton press at 30-45 min × 100 kg is only ~3.5 t/d at 24-hour operation — size cell count honestly.

Strong flaking and conditioning control removes most arguments about machine size that are really pretreatment problems.

Why hydraulic

Why a hydraulic press suits specialty soybean — and where it does not

Soybean is an unusual case among pressed seeds because its oil content is only 18-22%, among the lowest of any commercial oilseed. That single fact reshapes the whole equipment conversation. A hydraulic press applies slow, even pressure that protects a non-GMO or organic claim and keeps every batch traceable, but it can only recover 12-16% of bean weight as oil, leaving 6-8% residual in the cake — economics that make sense for specialty, identity-preserved, and regional projects under roughly 50 tons per day, not for commodity scale. Above 100 tons per day, hexane solvent extraction recovers over 95% of the oil and leaves under 1% residual, and pretending a batch hydraulic line can match that throughput only leads to a re-sized plant later. Within the right scale, the hydraulics themselves are the same proven system used across the soybean oil line team range: 60 MPa system pressure driven by a 2.2 kW motor, mechanical high- and low-pressure relief valves rather than solenoids, a standard 390 × 800 mm barrel holding about 100 kg, and the model 325 frame using 14 partition plates. What changes between the 300/325 hot-conditioned frames and the stiffer 355-500 cold frames is frame strength and pressure stability, not the core hydraulics. But for soybean the press is never the whole story — because oil content is low, yield is won or lost upstream at flaking (0.25-0.35 mm) and conditioning (70-80°C), and the meal co-product (protein 44% with hulls, 48-50% dehulled) often carries as much project value as the oil. A correctly prepared feed makes the hydraulic press predictable; skipping prep makes no tonnage large enough.

Project boundary

What to confirm before scoping Soybean Oil Press Process Guide

Soybean Oil Press Process Guide should not be quoted from an equipment name alone. Check feed lots, target oil, post-press handling, and packing rhythm in one scope before deciding which Soybean Oil Press modules stay. Listed on the factory hot-press page — discuss 300/325 first.

When feed condition, moisture, impurities, batch weight, and product position are unclear, press tonnage and filter area become guesswork. Factory systems share 60 MPa and 2.2 kW motors; hot pure press is 30–40 min/barrel and cold pure press is ~2 h/barrel — cycle time matters more than brochure tonnage.

• Confirm whether feed is whole seed, kernels, pretreated material, or an existing semi-finished stream.
• Confirm whether the target is crude oil, filtered oil, bottled oil, drum ingredient oil, or a refining handoff.
• Hot cycle reference: pure press 30-40 min/barrel, ~1.5 h for 2 barrels with loading; cold pure press ~2 h/barrel, ~4.5 h for 2 barrels.
• Confirm batch rhythm, labor, changeover, retained samples, power (often 380V/50Hz/3ph), and site install conditions.

Factory model check

Match hot / cold models to factory hard data

Pin models to published factory specs before tonnage talk.

Hot 300/325: 300–325 ton, 60 MPa system, standard barrel Ø390×800 mm / max 100 kg, pure press 30–40 min/barrel, ~1.5 h for 2 barrels with loading, 2.2 kW motor. Cold 355/400/426/480/500: 370–630 ton, integrated frame, same 100 kg standard barrel, pure press ~2 h/barrel, ~4.5 h for 2 barrels with loading; optional Ø300 high-pressure barrel max 60 kg. Residual oil target ~≤5% (peanut hot often 6–8% measured).

• Standard barrel Ø390×800 mm, max ~100 kg crushed feed; optional Ø300 high-pressure barrel max ~60 kg.
• Cylinder material 27SiMn; cold frames are integrated molded steel; hot frames are typically H-type channel steel.
• Listed on the factory hot-press page — discuss 300/325 first.

Equipment check

project scope needs to land in equipment interfaces

Once the route is clear, write the interfaces: how preparation feeds the press, how oil leaves the press, how filtration connects to tanks, and how packing receives finished oil.
