On a soybean line the press is the easy part — the pretreatment modules decide yield

Which press count fits which soybean scale

The hydraulic facts that are the same on every model

The modules that turn a press into a soybean line

• ▸Cleaning and drying: vibrating screen + magnetic separator + destoner brings impurities below 0.1%, then dry intake 12-13% down to 10-11% moisture for clean cracking.
• ▸Cracking and dehulling: corrugated cracker rolls break each bean into 4-6 pieces; an aspirator removes the 7-9% hull to lift meal protein from 44% to 48-50%.
• ▸Flaking and conditioning: smooth-roll flaker to 0.25-0.35 mm ruptures oil cells; a steam-jacketed conditioner at 70-80°C × 30-45 min softens cell walls — this pair sets soybean yield.
• ▸Filtration and meal: 200-300 mesh plate-frame filter plus a 24-hour settling tank for clear crude oil, and a cake breaker plus bagger (or hammer mill for food-grade soy flour).

A line runs at the speed of its slowest stage. For soybean, that stage is almost always flaking or conditioning, not the press — match them or the press sits idle.

Why the line, not the press, defines a soybean project

On most oilseed lines the press is the centerpiece, but soybean inverts that logic because its oil content is only 18-22% — among the lowest of pressed seeds. The hydraulic press itself is a settled, proven component: the same 60 MPa system pressure, the same 2.2 kW pump motor, the same mechanical relief valves and 390 × 800 mm barrel holding about 100 kg run across the range, and the model 325 simply adds frame strength and 14 partition plates over the smaller 200-ton unit. Choosing between them is a matter of matching daily scale, not chasing a yield secret. The real engineering on a soybean line happens before the barrel. Because oil is locked in 10-15 μm cells, the flaking roll thinning beans to 0.25-0.35 mm and the conditioner holding feed at 70-80°C for 30-45 minutes are what actually convert the 18-22% oil content into 12-16% recovered yield; weaken either and the press, however large, returns 8-12%. That is why a sound configuration sizes the prep line first — cleaning to under 0.1% impurities, drying intake from 12-13% to 10-11% moisture, cracking into 4-6 pieces, dehulling the 7-9% hull where HiPro meal is wanted — and then matches press cell count to whatever that prep line can feed. A line runs at the speed of its slowest stage, and on soybean that stage is almost always flaking or conditioning. The meal side carries equal weight: dehulled cake at 48-50% protein is worth 15-25% more than the 44% commodity grade, so cake breaking, bagging, or milling into food-grade flour belongs in the layout from the start, not as an afterthought once oil is flowing. Size the modules around the press, give every stage room to keep pace, and the press becomes the easy, predictable part of a project whose value was decided upstream and downstream of it.

What to confirm before scoping Soybean Hydraulic Oil Press Line: Model Ladder, Shared Hydraulics, and Pretreatment Modules

Soybean Hydraulic Oil Press Line: Model Ladder, Shared Hydraulics, and Pretreatment Modules should not be quoted from an equipment name alone. Check feed lots, target oil, post-press handling, and packing rhythm in one scope before deciding which Soybean Oil Press modules stay. Listed on the factory hot-press page — discuss 300/325 first.

When feed condition, moisture, impurities, batch weight, and product position are unclear, press tonnage and filter area become guesswork. Factory systems share 60 MPa and 2.2 kW motors; hot pure press is 30–40 min/barrel and cold pure press is ~2 h/barrel — cycle time matters more than brochure tonnage.

• ▸Confirm whether feed is whole seed, kernels, pretreated material, or an existing semi-finished stream.
• ▸Confirm whether the target is crude oil, filtered oil, bottled oil, drum ingredient oil, or a refining handoff.
• ▸Hot cycle reference: pure press 30-40 min/barrel, ~1.5 h for 2 barrels with loading; cold pure press ~2 h/barrel, ~4.5 h for 2 barrels.
• ▸Confirm batch rhythm, labor, changeover, retained samples, power (often 380V/50Hz/3ph), and site install conditions.

Match hot / cold models to factory hard data

When discussing Soybean Hydraulic Oil Press Line: Model Ladder, Shared Hydraulics, and Pretreatment Modules, pin models to published factory specs — not tonnage alone.

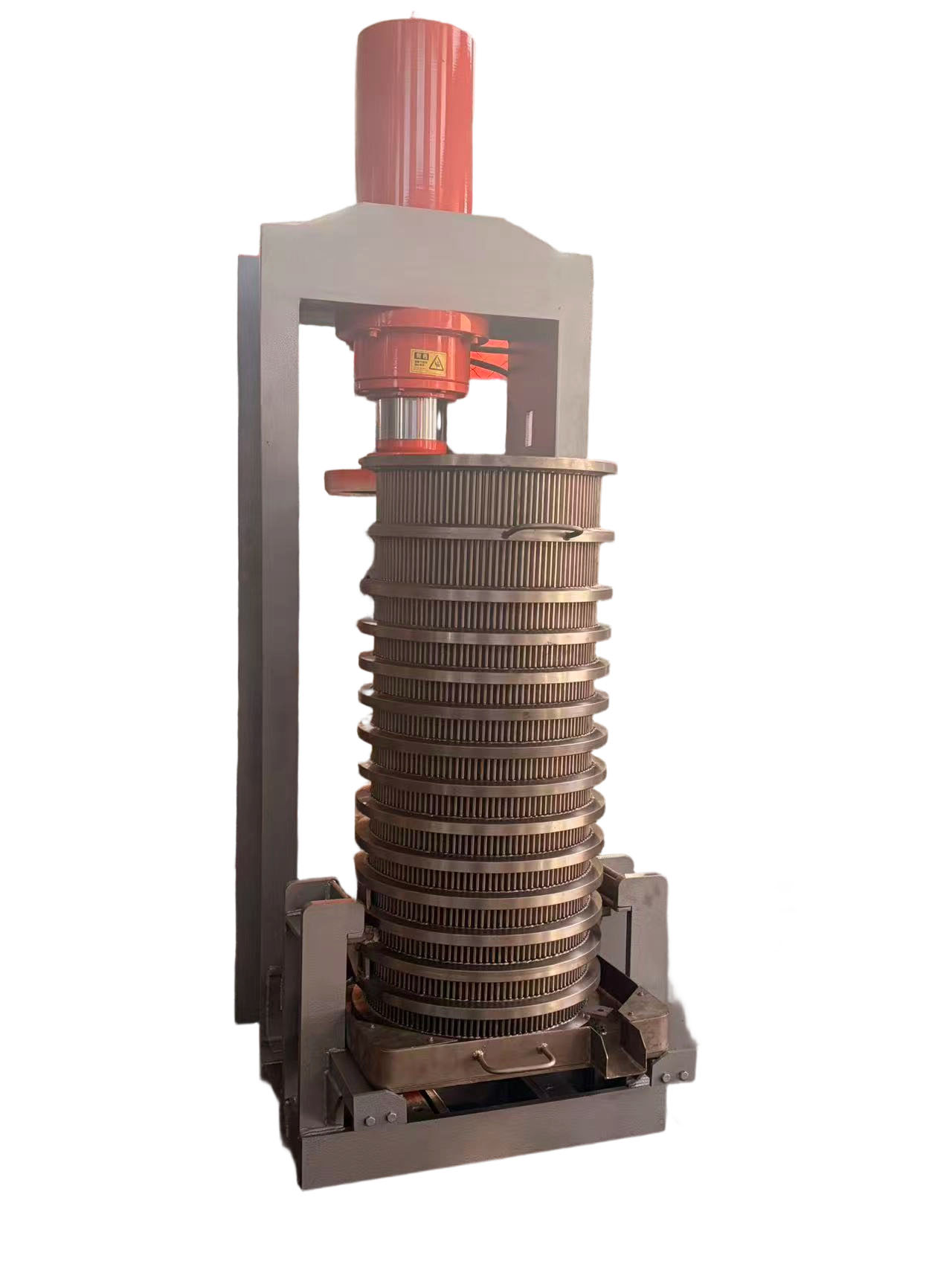

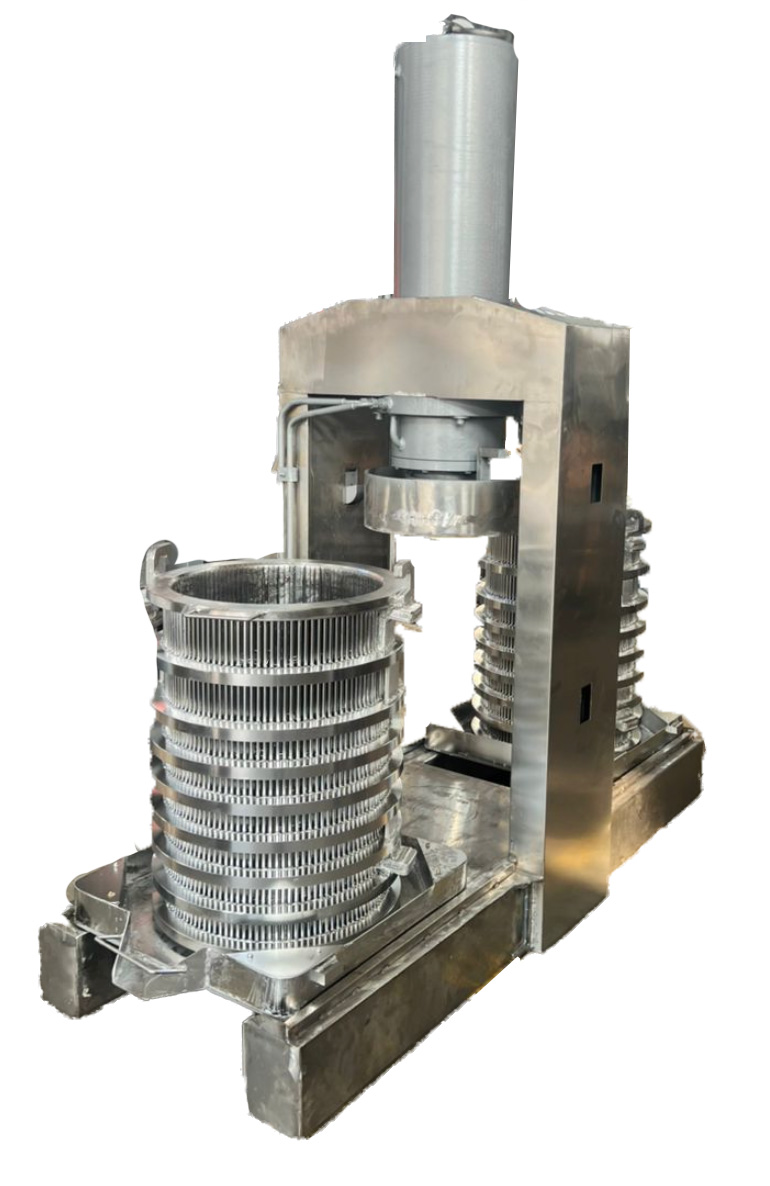

Hot 300/325: 300–325 ton, 60 MPa system, standard barrel Ø390×800 mm / max 100 kg, pure press 30–40 min/barrel, ~1.5 h for 2 barrels with loading, 2.2 kW motor. Cold 355/400/426/480/500: 370–630 ton, integrated frame, same 100 kg standard barrel, pure press ~2 h/barrel, ~4.5 h for 2 barrels with loading; optional Ø300 high-pressure barrel max 60 kg. Residual oil target ~≤5% (peanut hot often 6–8% measured).

• ▸Standard barrel Ø390×800 mm, max ~100 kg crushed feed; optional Ø300 high-pressure barrel max ~60 kg.
• ▸Cylinder material 27SiMn; cold frames are integrated molded steel; hot frames are typically H-type channel steel.
• ▸Listed on the factory hot-press page — discuss 300/325 first.

project scope needs to land in equipment interfaces

After Soybean Hydraulic Oil Press Line: Model Ladder, Shared Hydraulics, and Pretreatment Modules is clear, write the interfaces: how preparation feeds the press, how oil leaves the press, how filtration connects to tanks, and how packing receives finished oil.
